Product Model
SL05SPP24PR01

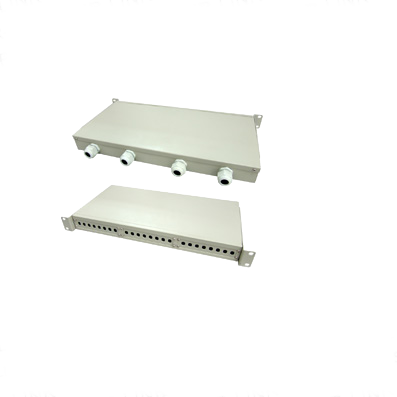

Description:Product model:SL05SPP24PR01 Description:FO Patch Panel SC Type 24 Port,19" 1U Rack Mounted Dimension ( L×W×H ):480mm×220mm×1U
Add List
Product Description
FEATURES:
1. The shell is high intensified & insulated material, thus having excellent mechanic
performance, It is solid and durable
2. Fiber in put:4
3. Adapters output:24
4. Strength core and shell was Insulation,add with grounding lead
5. Can be installed against wall
6. Full accessories for convenient operations
PERFORMANCE：
1. Excellent design
2. Maximum cores 24
3. Fiber lead 、grounding and perfect fixup 、 reliable
4. Pigtail fixup reliable and perfect protection
5. Apply to extensive field
6. Convenient operations and maintenance
Product parameters
SPECIFICATIONS：
1. Environment temperature：－25℃～＋45℃
2. Relative humidity：≤85%（30℃）
3. Atmosphere pressure：70～106KPa
4. Insulated Resistance：≥2×10MΩ/500V（DC）
5. Intensity≤15KV(DC)/1minno spark-over and no flying arc
6. Fiber bending radium guaranteed more than 40mm：≥40mm
Application: It is applicable for straight-through connection and diverged
connection in aerial layout , duct and direct buried. It can protect fiber
connectors.
Ordering Information
ORDERING INFORMATION：
Product Code | Description | Packaging | Carton Size | GW |
SL05SPP24PR01 | FO Patch Panel SC Type 24 Port,19" 1U Rack Mounted | 10PCS | 49*40*70 cm | -- |
