Product Model
SKJ-833101

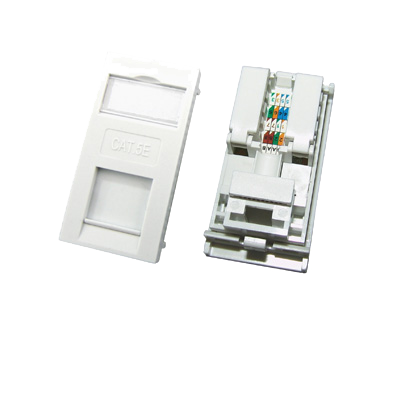

Description:Product model:SKJ-833101 Description:UTP Cat.5e Module, UK type, Tooless
Add List
Product Description
Main Description Of The Product：
1. UTP Cat.5e Keystone Jack, British type, fit for connecting application of
communication ports in working area.
2. Fitting for 1 port, 2ports, 4ports british type faceplate, with the punching
sequence direction marks on the sides of keystone jack, which can provides a
correct and quick guide for punching and connecting operation.
3. According to the standard of the ISO/IEC 11801:2002 Class D & ANSI/TIA/EIA568-B
CAT.5e, T568A punching sequence and T568B punching sequence are both compatible.
4. Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.5e
cables.
5. Fitting for the Cat.5e general cable distribution system.
Product parameters
Technique Characteristics：
1. Material of plastic parts: PC UL94V-0
2. Material of the FCC connectors’ 8 Pin of the RJ45 jack: Phosphor bronze with
golden plated 3U、6U、15U、30U、50U at option. Inserting duration: 750 times.
3. Material of the IDC Clips: Tinned phosphor bronze pins. Fitting for
22AWG/23AWG/24AWG cables. Punching duration: 250 times.
4. Standard krone punching tool.
5. Testing condition of transmitting capability: 100MHz.
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SKJ-833101 | UTP Cat.5e Module, UK type, Tooless | 500 PCS | 40*29*53 cm | 10 kg |
