Product Model
SPP-A562L1

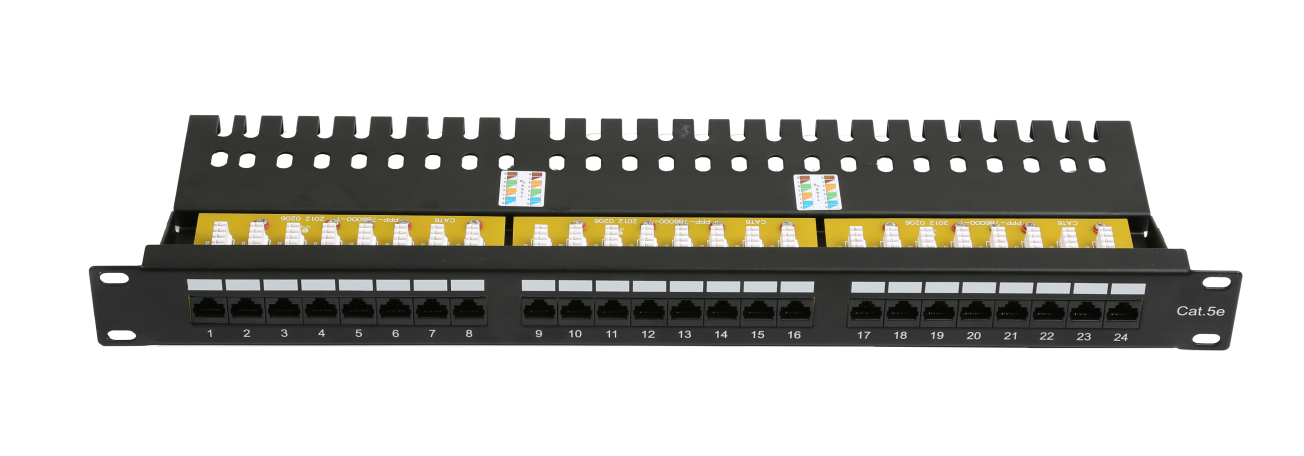

Description:Product model:SPP-A562L1 Description:UTP Cat.5e Patch Panel，24 port
Add List
Product Description
NOTES:
ELECTRICAL:
1. Voltage rating: 125 VAC RMS
2. Current rating: 1.5 AMP
3. Contact resistance: 20 Milliohms MAX
4. Insulation resistance: 100 Megohms MIN @ 500 VDC
5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN
Product parameters
ENVIRONMENTAL：
1. Storage: -40°TO +70°
2. Operation: -10°TO 60°
Mates with modular plug conforming to FCC part 68, Subpart F.
MECHANICAL：
1. Housing material: PBT+30%GF
2. Panel Frame: ST-12, POWER COATING IN BLACK COLOR
3. IDC Material: PC TERMINAL; PHOSPHOR BRONZE,TIN PLATING
4. RJ45 JACK LIFE: 750 TIMES MIN
5. IDC LIFE: 200 TIMES MIN
6. WIRE: AWG 22~24
7. TIA Cat 5e Perm. Link Test: Worst pair NEXT margin≥ 3.0dB
8. Retentiveness of insertion structure: 50N 60±5s
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-A562L1 | UTP Cat.5e Patch Panel，24 port | 5 PCS | 55*20*27 cm | - |
