Product Model
SKJ-263101

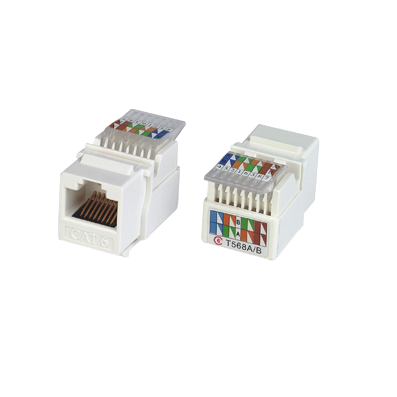

Description:Product model:SKJ-263101 Description:UTP Cat.6 Keystone Jack, Tooless
Add List
Product Description
Main Description Of The Product：
1. Keystone Jack, Cat.6 Class E, UTP type, for connecting application of
communication prots in working area.
2. A compact & ingenious designing, with the punching sequence direction marks on the
punching cover of the keystone jack. That can provides a correct and quick guide
for punching and connecting operation. And the fastener hats will make sure the
cable can be fixed reliably in the IDC clips.
3. According to the standard of ISO/IEC 11801:2002 Class E & ANSI/TIA/EIA 568-B.2-1
CAT.6, T568A punching sequence and T568B punching sequence are both compatible.
4. Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.6 calbes.
5. Fitting for the Cat.6 general cable distribution system. Compatible for Cat.5 and
Cat.5e systems.
Product parameters
Technique Characteristics：
1. Material of plastic parts: PC UL94V-0
2. Material of the FCC connectors’ 8 pin: Phosphor bronze with golden plated 3U、6U、
15U、30U、50U at option. Inserting duration: 750 times.
3. Material of the IDC Clips: Tinned phosphor bronze pins. Fitting for
22AWG/23AWG/24AWG cables. Punching duration: 250 times.
4. Punching tools: tooless punching type assembly the calbes with the punching cover.
5. Testing condition of transmitting capability: 250MHz
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SKJ-263101 | UTP Cat.6 Keystone Jack, Tooless | 500 PCS | 40*29*53 cm | 7.3 kg |
