SFP-S62101

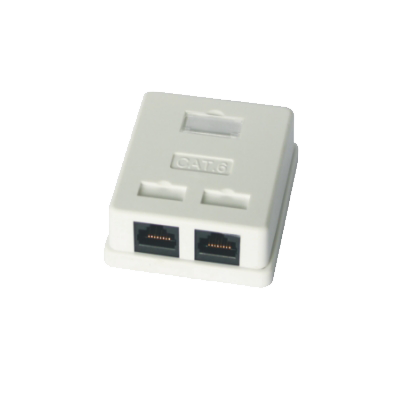

Description:Product model:SFP-S62101 Description:Cat.6 mounting box 2ports

Add List

Product Description

ELECTRICAL:

1. Voltage rating: 125 VAC RMS

2. Current rating: 1.5 AMP

3. Contact resistance: 20 Milliohms MAX

4. Insulation resistance: 100 Megohms MIN @ 500 VDC

5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN

Product parameters

MECHANICAL：

1. Cover material: ABS

2. Base material: ABS

3. IDC material: PC UL94V-0 CONTACT; PHOSPHOR BRONZE, TIN PLATED

4. PCB material: FR-4 T=1.6mm

5. RJ45 JACK LIFE: 750 CYCLES MIN

6. IDC LIFE: 200 TIMES MIN

7. WIRE: AWG 22-24

9. TIA CAT5e PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥5.0dB

10. Retentiveness of insertion structure: 50N 60±5s

ENVIRONMENTAL：

1. Storage: -40°TO +70°

2. Operation: -10°TO +60°

3. Mates with modular plug conforming to FCC part 68, Subpart F.
