Product parameters
NOTES:
ELECTRICAL:
1. VOLTAGE RATING : 125 VAC RMS
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 100 MILLIOHMS MAX
4. INSULATION RESISTANCE : 1000 MEGOHMS MIN @ 500 VDC
5. DIELECTRIC STRENGTH : 750 VAC RMS 60Hz,1MIN
ENVIRONMENTAL:
1. STORAGE : -40°TO +85°
2. OPERATION : 0° TO 70°
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F.

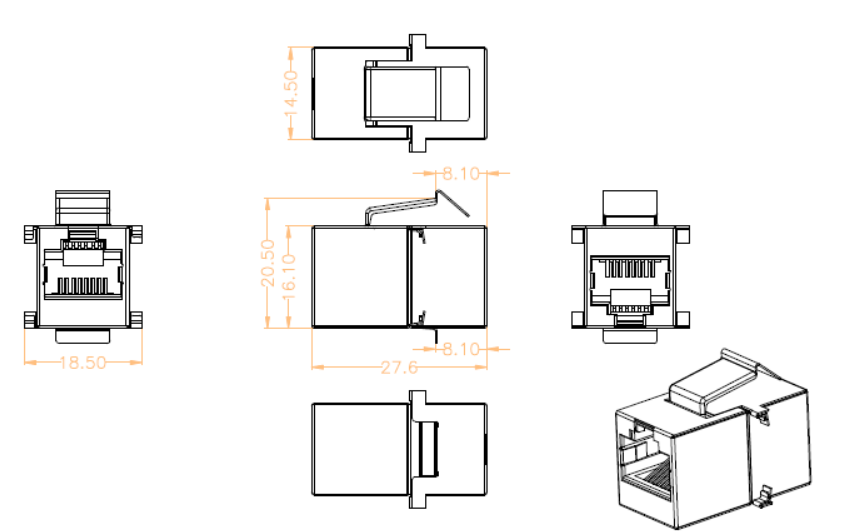

MECHANICAL:
1.SHIELD MATERIAL: STAINLESS STEEL, T=0.25mm
2.HOUSING MATERIAL: PBT+20%.GF UL94V-0
3.INSERT MATERIAL : PBT+20%.GF UL94V-0
4.CONTACT MATERIAL : PHOSPHOR BRONZE STAMP PIN T=0.35mm
5.RJ45 JACK LIFE: 750 TIMES MIN
6.Retentiveness of insertion structure: 50N 60±5s
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |

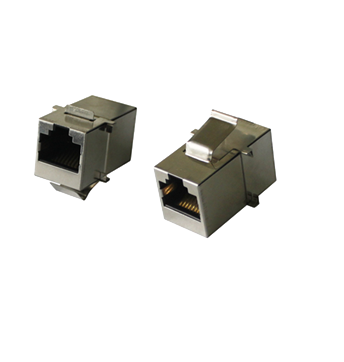

SKJ-2IC201 | FTP Cat.5e Keystone Type C | 500 PCS | 40*29*53 cm | 8.7 kg |
