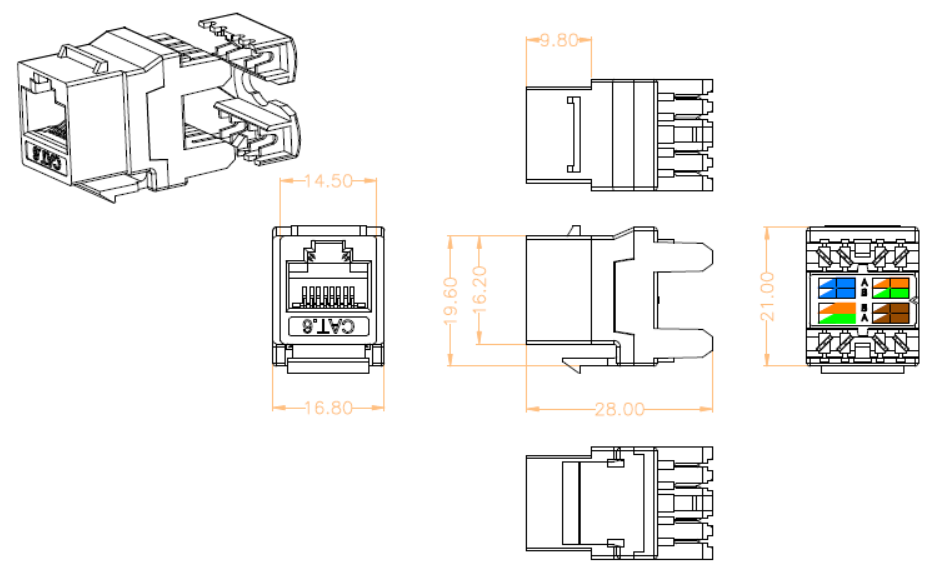

SKJ-F62101

Product Model

SKJ-F62101 SKJ-F32101 SKJ-F621A1

Add List

Product parameters


NOTES:

ELECTRICAL:

1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 20 Milliohms MAX

4.  Insulation resistance: 100 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN

6. C6 PERMANENT LINK: CONFROM TO ANSI/TIA/EIA-568 B.2-1



ENVIRONMENTAL

1.  Storage: -40°TO +70°

2.  Operation: -10°TO +60°

    Mates with modular plug conforming to FCC part 68, Subpart F.


MECHANICAL

1.  Housing material: PC

2.  Insert material: PC

3. PCB material: FR-4 T=1.2mm

4.  Contact material: Phosphor bronze stamp PIN T=0.35mm

5. IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.   RJ45 JACK LIFE: 750 TIMES MIN

7.  IDC LIFE: 200 TIMES MIN

8.  WIRE: AWG 22-24

9.  TIA CAT 6 PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥3.0dB

10. Retentiveness of insertion structure: 50N 60±5s


Ordering Information

Product Code

Description

Packaging

Carton Size

GW

SKJ-F32101

UTP Cat.5e Keystone Jack 180 degree(Short Type)

500 PCS

40*29*53 cm

7.6 kg

SKJ-F62101

UTP Cat.6 Keystone Jack 180 degree(Short Type)

500 PCS

40*29*53 cm

7.6 kg

SKJ-F621A1

UTP Cat.6A Keystone Jack 180 degree(Short Type)

500 PCS

40*29*53 cm

7.6 kg
