Product Model
SPP-AC62L1 SPP-A862L1 SPP-A562L1
Product parameters
Main Description of The Product:

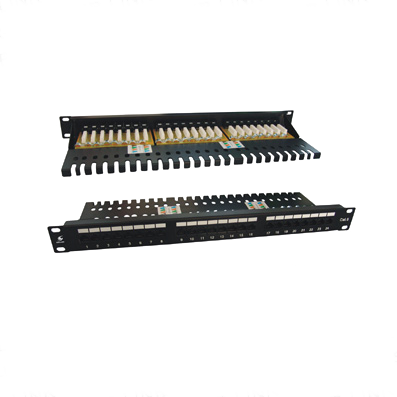

1. 24 ports patch panel, Cat.6 UTP type. The structure of each port of this patch
panel is same and unalded. That structure makes sure that the performance of each
port is consisitent.
2. The cable manager is combined in this patch panel. All kinds of cables with
different dimensions can be fixed on the patch panel.
3. According to ISO/IEC 11801:2002 CLASS E and ANSI/TIA/EIA/568B.2-1 Cat.6 standard.
T568A punching sequence and T568B punching sequence are both compatible. Fitting
for horizontal distribution in the equipments room and equipments connecting.
4. Connecting: FCC port for Cat.6 UTP patch cord and IDC for horizontal distribution
calbes.
5. Compatibility: Compatible for UTP Cat.6 or Cat.5e、Cat.5 general cable
distribution systems.
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, golden clad phosphor bronze pins; Shielding shell of the RJ45 jack; Brass housing with nickel plate; IDC clip: Tinned phosphor bronze pins.
3. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.
4. Cabling sequence: T568A & B
5. Punching tools: standard LSA type or 110 type punching tool. (According to the IDC port you chose, LSA or 110 type).
6. Testing condition of transmitting capability: 250MHz.
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-A562L1 | UTP Cat.5e Patch Panel, 24 Port, LSA IDC | 5 PCS | 55*20*27 cm | 8.5 kg |
SPP-A862L1 | UTP Cat.6 Patch Panel, 24 Port, LSA IDC | 5 PCS | 55*20*27 cm | 8.5 kg |
SPP-AC62L1 | UTP Cat 6A Patch Panel, 24 Port, LSA IDC | 5 PCS | 55*20*27 cm | 8.5 kg |
