SFP-901101

Product Model

SFP-901101

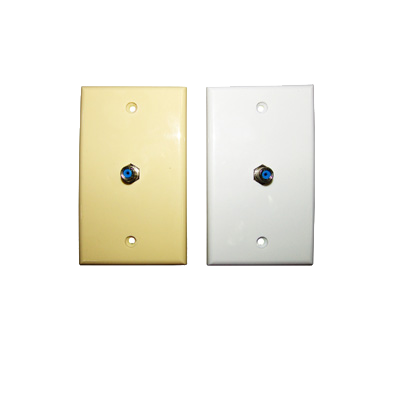

Description:Product model:SFP-901101 Description:Faceplate, 120 type, with F81 Connector

Add List

Product Description


The F81 connectors are used to connect (splice) coaxial cable RG6 and RG59. Compatible with all satellite delivery systems: DirecTV, DISH Network, and C-Band. Also compatible with all cable TV services.

- Superb, Digital broadband performance to 1GHz

- Ideal for use with all digital signals

- High return loss seizing mechanism provides low loss performance from DC~1GHz

- Precision machined threads and flat port interface provides maximum  electromechanical bond

- Corr of trouble-free operation




Product parameters


INSTRUCTIONS

1. Connect cables or coax antenna wire to the screw terminals on the backof the plate.

2. Strip 3" from outer jacket of telephone wire and 1/2" from each conductor.

3. Connect wires to modular jack using the Wire Cross Reference Chart.

4. Secure wall plate to junction box using screws provided.

5. Color of faceplate: White or Ivory

Ordering Information

Product Code

Description

Packaging

Carton Size

GW

SFP-901101

Faceplate, 120 type, with F81 Connector

500 PCS

42*41*53 cm

16 kg
