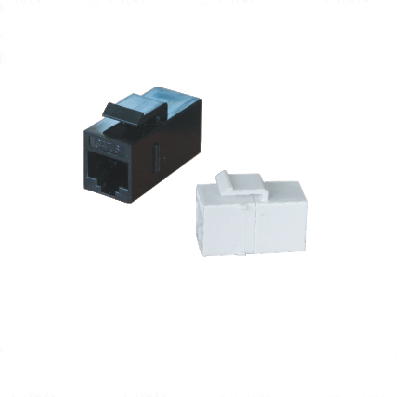

SKJ-WT-2206-C6

Product Model

SKJ-WT-2206-C6 SKJ-WT-2206-C5e

Add List

Product parameters



NOTES:
 ELECTRICAL:
  1. VOLTAGE RATING : 125 VAC RMS
  2. CURRENT RATING  : 1.5 AMP
  3. CONTACT RESISTANCE : 100 MILLIOHMS MAX
  4. INSULATION RESISTANCE : 1000 MEGOHMS MIN @ 500 VDC
  5. DIELECTRIC STRENGTH : 750 VAC RMS 60Hz,1MIN




 ENVIRONMENTAL:
  1. STORAGE   : -40° TO +70°
  2. OPERATION  : -10° TO +60°
  CONFORM TO TIA/EIA 568B CATEGORY C6
  MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F.

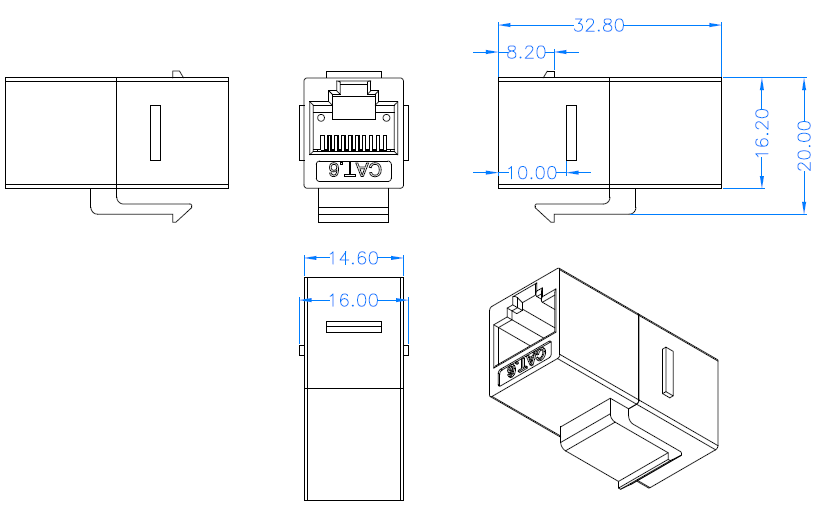

MECHANICAL:
  1.HOUSING MATERIAL: PC
  2.JACK HOUSING MATERIAL  : PBT+15%GF
  3.PCB MATERIAL: FR-4 THINKNESS:1.6mm
  4.CONTACT MATERIAL : PHOSPHOR BRONZE STAMP PIN T=0.35mm
  5.IDC CONTACT MATERIAL  : PHOSPHOR BRONZE T=0.50mm NICKEL PLATING

Ordering Information

Product Code

Description

Packaging

Carton Size

GW

 SKJ-WT-2206-C5e

C5e UTP Through Coupler Keyston

500 PCS

40*29*53 cm

5.5 kg

SKJ-WT-2206-C6

C6 UTP Through Coupler Keystone

500 PCS

40*29*53 cm

5.5 kg
