Product Model

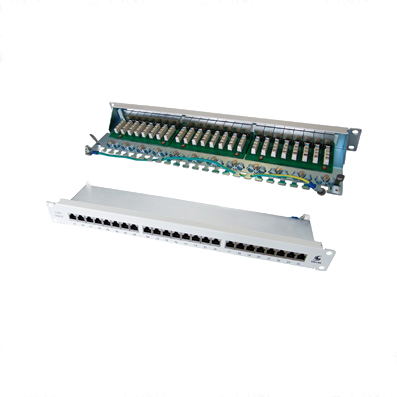

SPP-0A63L1 SPP-0A63D1 SPP-E762L1
Product parameters
Main Description of The Product:
1. Each port of this Cat.6 FTP patch panel has the same unaided cabling structure, It
will make sure that the performance of each port consistent.
2. The cable management and grounding device are combined in this patch panel. All
kinds of cables with different dimensions can be fixed on the patch panel. The
shielding foil of the cabels and the grounding device of the patch panel can be
connected very well so that the shielding effect of this patch panel will be very
outstanding.
3. According to the standard of ISO/IEC 11801:2002 CLASS E and ANSI/TIA/EIA/568B.2-1
Cat.6 standard. T568A and T568B color code are printed both on the PCB and IDC
surface to give a correct guide when a engineer punch the cables. Ftting for
horizontal distribution in the equipments room and equipments connecting.
4. Connecting: RJ45 port for Cat.6 FTP patch cord and IDC for horizontal distribution
calbes.
5. Environmentalist requirement: In accord with the RoHS requirement.
6. Compatibility: Compatible for all kinds of Cat.6、Cat.5e and Cat.5 systems.
1. Entire steel outer frame, with plastic powder cladding (nonelectric part ) and
zincification cladding (shielding parts ).
2. RJ45 jack frame material: PBT frame with 50U golden plated phosphor bronze pins;
Shielding shell of the RJ45 jack: Brass housing with nickel-plated. IDC clip:
Tinned phosphor bronze pins.
3. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. Inserting
duration: 750 times.
4. Cabling sequence: T568A & B
5. Punching tools: standard LSA tool.
6. Testing condition of transmitting capability: 250MHz.
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-E762L1 | FTP Cat.5e Patch Panel, 24 Port, LSA IDC, Black | 5 PCS | 55*20*27 cm | 10.8 kg |
SPP-0A63D1 | FTP Cat.6 Patch Panel, 24 Port, Dual use A IDC, Grey | 5 PCS | 55*20*27 cm | 10.8 kg |
SPP-0A63L1 | FTP Cat.6A Patch Panel, 24 Port, LSA IDC, Grey | 5 PCS | 55*20*27 cm | 10.8 kg |
