SLU6CB231

Product Model

SLU6CB231

Description:Product model:SLU6CB231 Description:LAN Cable UTP Cat.6 Solid Grey, 23AWG

Add List

Product Description


PRODUCT  DESCRIPTION
1.  4 pairs 100 Cat.6 cable, adopt 23AWG bare copper to be the center conduction, PE
     to be the dielectric and fireproof material to be the jacket.
2.  This cable is gray and conform to the standards like ISO/IEC, TIA/EIA and EN.
3.  All the electrical characteristics are even exceed the lastest Cat.6 standards of
     ISO/IEC. The “+” typer inner frame in the center ensures NEXT capacity and
     reasonable minimum bend radius.
4.  LSZH: means “Low somke zero halogen”, which is the symbol of environmental
     protection.


Product parameters


ELECTRICAL  CHARACTERISTICS
1.  Impedance: 100±15
2.  Return resisitance: 9.4/100m
3.  Unbalance resisitance: ≤5%
4.  Static electric capacity: 51pF/m 1KHz
5.  Unbalance capacity: 73.2pF/100m
6.  Roted communicate rate: 65%

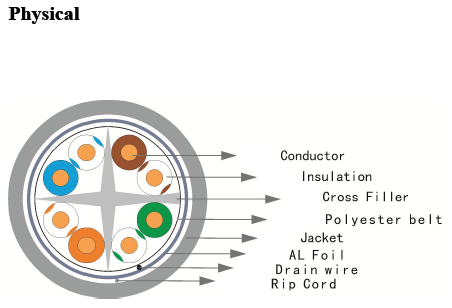

PHYSICAL  CHARACTERISTICS
1.  Copper diameter: 23AWG
2.  Impedance: 100±15
3.  Outer diameter: 6.1±0.2mm
4.  Weight: 13.5kg/kft
5.  Minimum bend radius: 6-8×OD
6.  Maximum pulling tension: ≤10
7.  Jacket material: PVC/LSZH
8.  Roted temperature: -20~60℃
9.  Packing: Axles & Carton


APPLICATION
1.  10/100/1000Mbps Ethernet;
2.  100VG-AnyLAN;
3.  Token ring;
4.  ATM155/ATM622 etc;


STANDARD
1.  ISO/IEC-11801 (2nd edition)
2.  EN (2nd edition)
3.  TIA/EIA-568B.2-1

Ordering Information


Product Code

Description

Packaging

Carton Size

GW

SLU6CB231

LAN Cable UTP Cat.6 Solid Grey, 23AWG

305 m/box

40*45*22 cm

14.5 kg
