Product Model
SLU5CB241

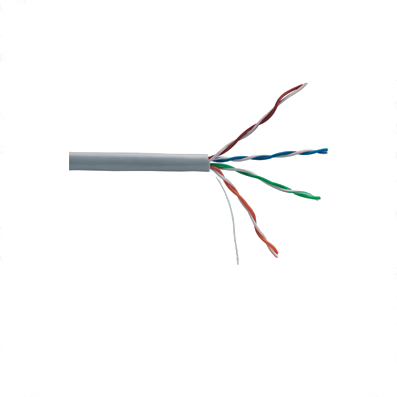

Description:Product model:SLU5CB241 Description:LAN Cable UTP Cat.5e Solid, Grey, 24AWG
Add List
Product Description
PRODUCT DESCRIPTION
1. This kind of cable use bare copper to be the center conduction with the
specification is 24AWG and PE to be the dielectric. The jacket is made of
fireproof material, which is so meanful to the Cat.5e communication.
2. This Cat.5e UTP cable is conform to the SIO/IEC, TIA/EIA and EN standards and the
electrical characteristics are exceed the lastest Cat.5e standards.
3. LSZH: means “Low smoke zero halogen”, which is the symbol of environmental
protection.
Product parameters
ELECTRICAL CHARACTERISTICS
1. Impedance: 100±15
2. Static electric capacity: max:17.1nf/kf
3. Resisitance: max:28.6/kf
4. Unbalance resisitance: max 5%
5. Unbalance capacity: max 330pF/100m
6. Roted communicate rate: 65%

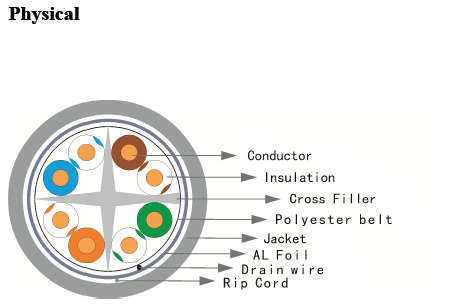

PHYSICAL CHARACTERISTICS
1. Copper diameter: 24AWG
2. Outer diameter: 5.0mm
3. Weight: 10.5kg/kft
4. Minimum bend radius: O.D.*4-6
5. Maximum pulling tension: 10.0
6. Jacket material: PVC/LSZH
7. Roted temperature: -20～60℃
APPLICATION
1. 10/100/1000Mbps Ethernet
2. 100VG-AnyLAN
3. Token ring
4. ATM155/ATM622 etc
STANDARD
1. ISO/IEC-11801
2. EN-50173
3. TIA/EIA-568B
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SLU5CB241 | LAN Cable UTP Cat.5e Solid, Grey, 24AWG | 305 m/box | 37*37*22 cm | 10.25 kg |
