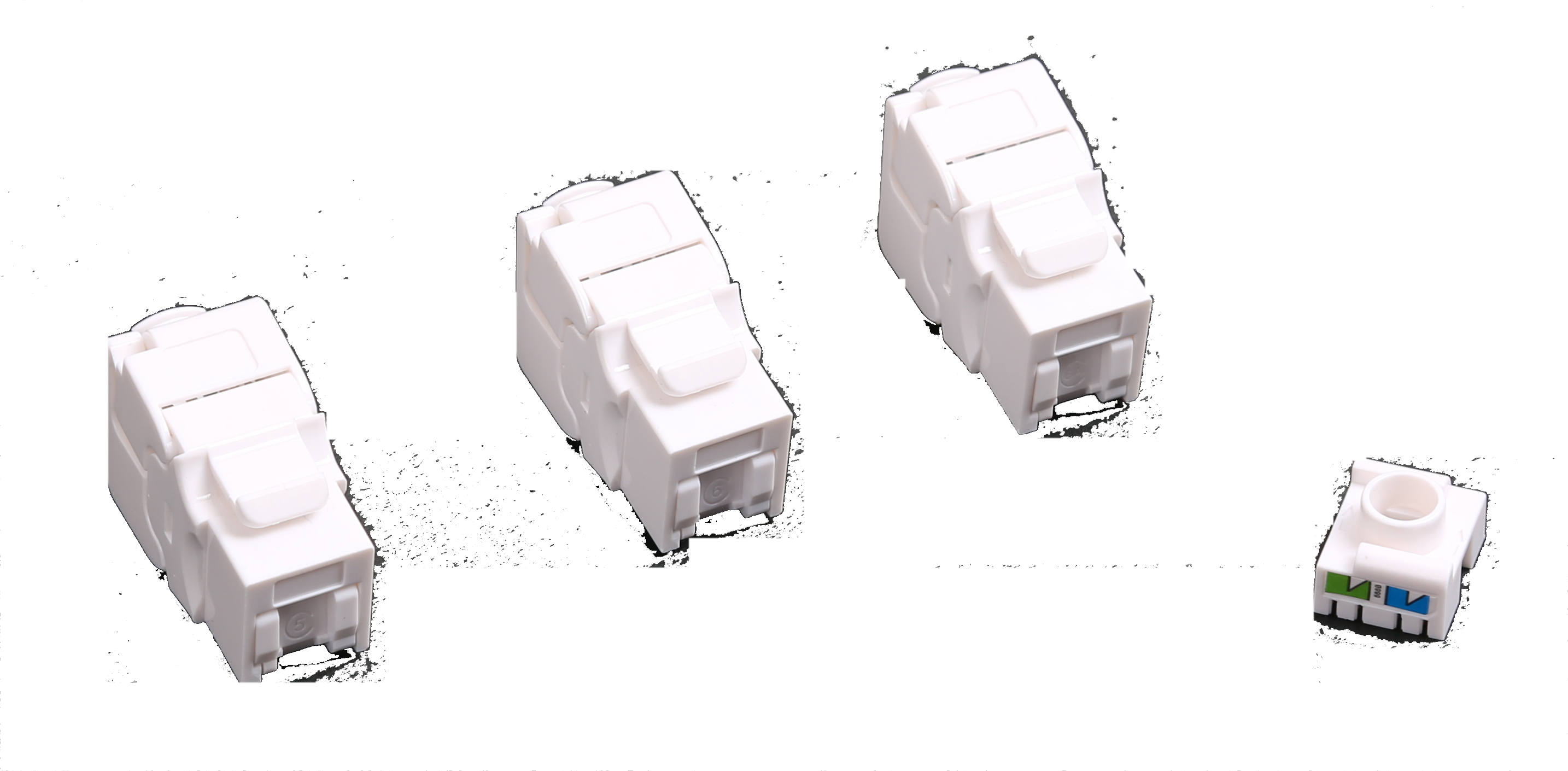

SKJ-X33111-1

Product Model

SKJ-X33111-1 SKJ-X63111-1

Add List

Product parameters



NOTES:

ELECTRICAL:

1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 100 Milliohms MAX

4.  Insulation resistance: 1000 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN





ENVIRONMENTAL

1.  Storage: -40°TO +70°

2.  Operation: -10°TO +60°

   Conform to TIA/EIA 568B CATEGORY 5e

    Mates with modular plug conforming to FCC part 68, Subpart F.


MECHANICAL

1.  Housing material: QIMEI PC110 UL94-V0

2.  Insert material: PBT+30%GF

3. PCB material: FR-4 T=1.6mm

4.  Contact material: Phosphor bronze stamp PIN T=0.3mm

5. IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.   RJ45 JACK LIFE: 750 TIMES MIN

7.  IDC LIFE: 200 TIMES MIN

8.  WIRE: AWG 22~24

9.  TIA CAT 5e PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥5.0dB

10. Retentiveness of insertion structure: 50N 60±5s

Ordering Information



Product Code

Description

Packaging

Carton Size

GW

KJ-X63111-1

UTP Cat.6 Keystone Jack 180 degree,tooless,with shutter

500 PCS

40*29*53 cm

7.6 kg

KJ-X33111-1

UTP Cat.5e Keystone Jack 180 degree,tooless,with shutter

500 PCS

40*29*53 cm

7.6 kg
