SKJ-533201

Product Model

SKJ-533201

Description:Product model:SKJ-533201 Description:UTP Cat.5e Keystone Jack Tooless

Add List

Product Description


ELECTRICAL:

1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 100 Milliohms MAX

4.  Insulation resistance: 1000 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN


Product parameters


ENVIRONMENTAL

1.  Storage: -40°TO +85°

2.  Operation: 0°TO 70°

      Conform to TIA/EIA 568B Category 5e

      Mates with modular plug conforming to FCC part 68, Subpart F.

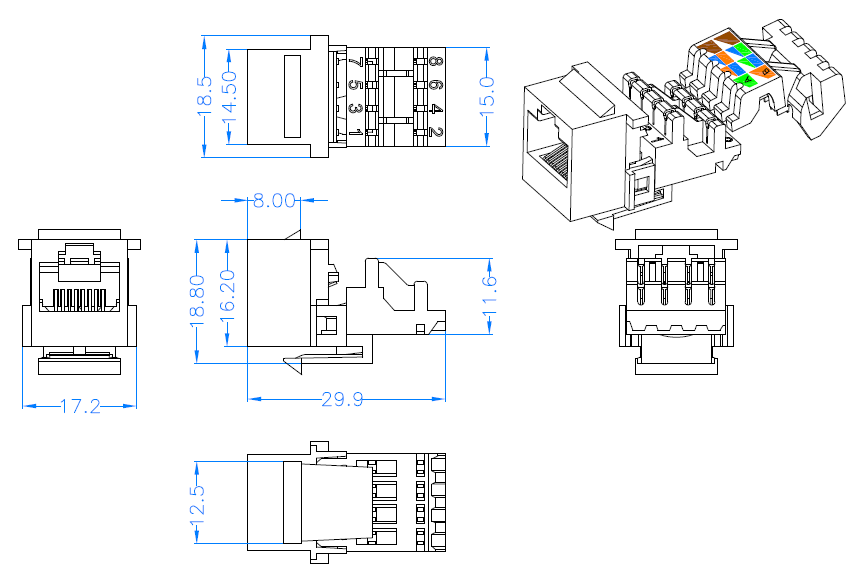

MECHANICAL

1.  Housing material: PC UL94V-0

2.  Inser material: Flame retardancy ABS UL94V-0

3.  PCB material: FR-4   Thickness:1.6mm

4.  Contact material: Phosphor bronze stamp PIN T=0.35mm

5.  IDC Contact material: Phosphor bronze T=0.50mm with nickel plating

6.  Wire: AWG 24-26

Ordering Information


Product Code

Description

Packaging

Carton Size

GW

SKJ-533201

UTP Cat.5e Keystone Jack Tooless

1000 PCS

35*29*70 cm

10 kg
