Product Model
SKJ-090201-1
Description:Product model:SKJ-090201-1 Description:C6 UTP Through Coupler Keystone
Add List
Product Description
NOTES:
ELECTRICAL:
1. VOLTAGE RATING : 125 VAC RMS
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 100 MILLIOHMS MAX
4. INSULATION RESISTANCE : 1000 MEGOHMS MIN @ 500 VDC
5. DIELECTRIC STRENGTH : 750 VAC RMS 60Hz,1MIN
Product parameters
ENVIRONMENTAL:
1. STORAGE : -40° TO +70°
2. OPERATION : -10° TO +60°
CONFORM TO TIA/EIA 568B CATEGORY C6
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F.

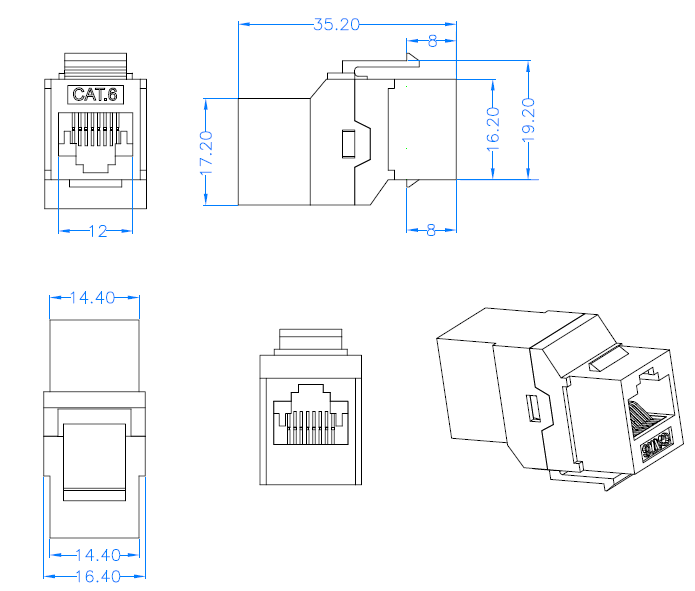

MECHANICAL:
1.HOUSING MATERIAL: PC
2.JACK HOUSING MATERIAL : PBT+15%GF
3.PCB MATERIAL: FR-4 THINKNESS:1.6mm
4.CONTACT MATERIAL : PHOSPHOR BRONZE STAMP PIN T=0.35mm
Ordering Information
Product Code | Description |
| SKJ-080201 | C5E UTP Through Coupler Keystone |
| SKJ-090201-1 | C6 UTP Through Coupler Keystone |
