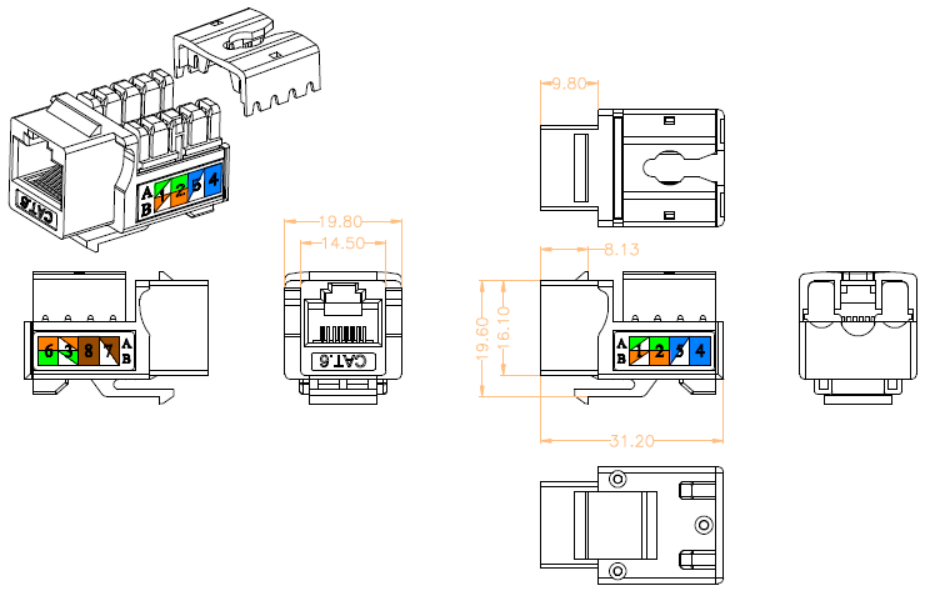

SKJ-230101 SKJ-260101 SKJ-26T1A1

Main Description Of The Product：

1.  Keystone Jack, Cat.5e Class E, UTP type, fit for connecting application of
      communication ports in working area.

2.  A compact & ingenious designing, with the punching sequence direction marks on the
      punching cover of the keystone jack, which can provides a correct and quick
      guide for punching and connecting operation. And the fastener hats will make
      sure the cable can be fixed reliably in the IDC clips.

3.  According to the standard of ISO/IEC 11801:2002 Class D & ANSI/TIA/EIA 568-B.2-1
      CAT.5e, T568A punching sequence and T568B punching sequence are both compatible.

4.  Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.5e cables.

5.  Fitting for the Cat.5e general cable distribution system. Com le for Cat.5  systems.

Technique Characteristics：

1.  Material of plastic parts: PC UL94V-0

2.  Material of the FCC connectors’ 8 pin of the RJ45 jack: Phosphor bronze with
      golden plated 3U、6U、15U、30U、50U at option. Inserting duration: 750 times.

3.  Material of the IDC clips: tinned phosphor bronze pins. Fit for 22AWG/23AWG/24AWG
      cables. Punching duration: 250 times.

4.  Punching tools: tooless punching type assembles the cables with the punching cover.

5.  Testing condition of transmitting capability: 100MHz
