Product Model
SLF5PG88M03 SLF6PG88M03

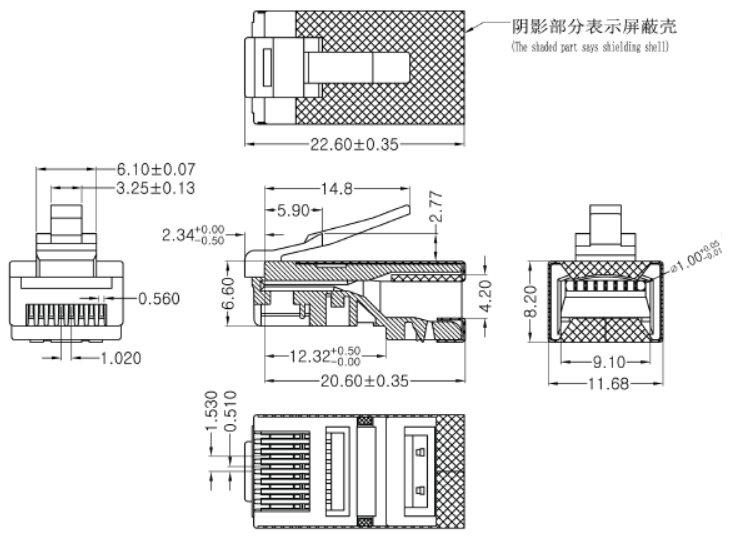

Description:Product model:SLF5PG88M03 SLF6PG88M03 Description:Cat.5e/Cat.6 Shielded 8P8C Plug
Add List
Product Description
ELECTRICAL:
UL APPLICATIONS: 250 VOLTS AC MAX, AT 2 AMPS.
DIELECTRIC WITHSTANDING VOLTAGE : 500 VOLTS AC.
INSULATION RESISTANCE: 100 MΩ
TERMINATION: RESISTANCE 20mΩ MAX AFTER
ENVIRONMENTAL TESTING.
Product parameters
MECHANICAL:
CABLE-TO-PLUG TENSILE STRENGTH : 20kg MIN.
DURABILITY : 200 MATING CYCLES.
MATERIAL & FINISH:
HOUSING: POLYCARBONATE, UL94V-0 OR UL94V-2.
COLOR: TRANSPARENT OR OTHER COLOR ARE AVAILABLE.
CONTACT BLADE: PHOSPHOR BRONZE.
CONDUCTOR : STRANDED & SOLID WIRE , 24AWG, 26 AWG.
GOLD PLATING: 3u''~50u",ARE AVAILABLE.
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SLF5PG88M03 | Cat.5e/Cat.6 Shielded 8P8C Plug | 15000 PCS | 42*41*53 cm | 27 kg |
SLF6PG88M03 | Cat.5e/Cat.6 Shielded 8P8C Plug | 15000 PCS | 42*41*53 cm | 27 kg |
