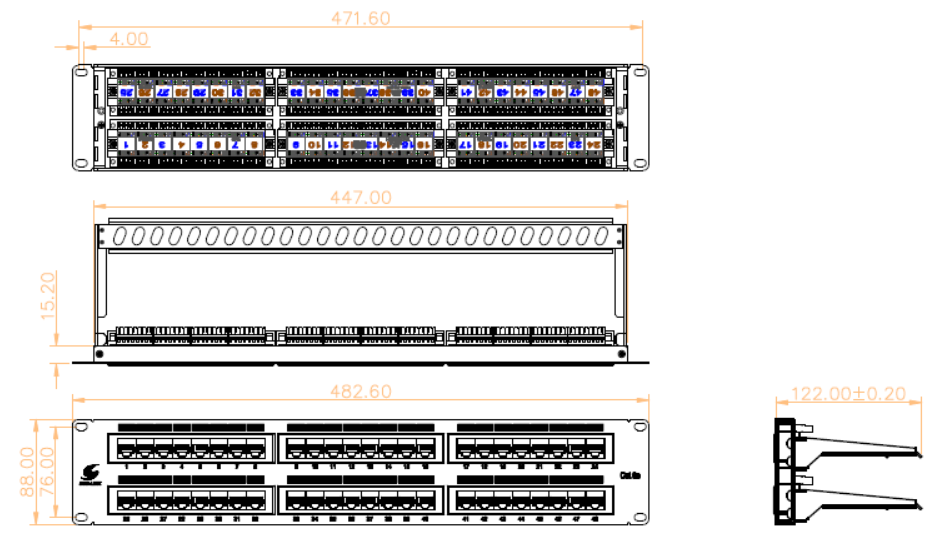

Product Model
SPP-SC92D1 SPP-SC92L1 SPP-SC92H1
Product parameters
NOTES:
ELECTRICAL :
1. VOLTAGE RATING：125 VAC RMS.
2.CURRENT RATING ：1.5 AMP
3. CONTACT RESISTANCE：20 MILLIOHMS MAX.
4. INSUL ATION RESISTANCE：100 MEGOHMS MIN @ 500 VDC.
5. DIELECTRIC STRENGTH：750 VAC RMS 60Hz， 1MIN.
6. C6a PERMANENT LINK:CONFORM TO ANSI/TIA/EIA-568 B.2- 1
MECHANICAL:
1. HOUSING MATERIAL：PBT+ 15%GF UL 94V
2. PANEL FRAME：S45C,POWDER COATING IN BL ACK COL OR
3 IDCMATERI：PC UL94V-0 CON TACT: PHOSPHOR BRONZE ,TIN PL ATED
4. RJ45 JACKLFE ：750 CYCLES MIN
5. IDC UIFE ; 200 TIMES MIN
6. WIRE：AWG 22- 24
7. TIA CAT6o PERM.LINK TEST: WORST PAIR NEXT MARGIN 23. OdB
8. RE TENTIVENESS OF INSERTION STRUCTURE : 50N 60+5 S
ENVIRONMENTAL:
1. STORAGE：-40°C TO + 70"C.
2. OPERATION : -10C TO +60C.
MATES WITH MODUL AR PLUG CONFORMING TO FCC PART 68，SUBPART F
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-SC92H1 | UTP Cat.6A Patch Panel , 48 Port, 110 IDC, with back bar，3U | 10 PCS | 53*32*32 cm | 15kg |
SPP-SC92L1 | UTP Cat.6A Patch Panel , 48 Port, Krone IDC, with back bar 3U | 10 PCS | 53*32*32 cm | 15 kg |
SPP-SC92D1 | UTP Cat.6A Patch Panel ,48 Port,Dual use IDC, with back bar 3U | 10 PCS | 53*32*32 cm | 15 kg |
