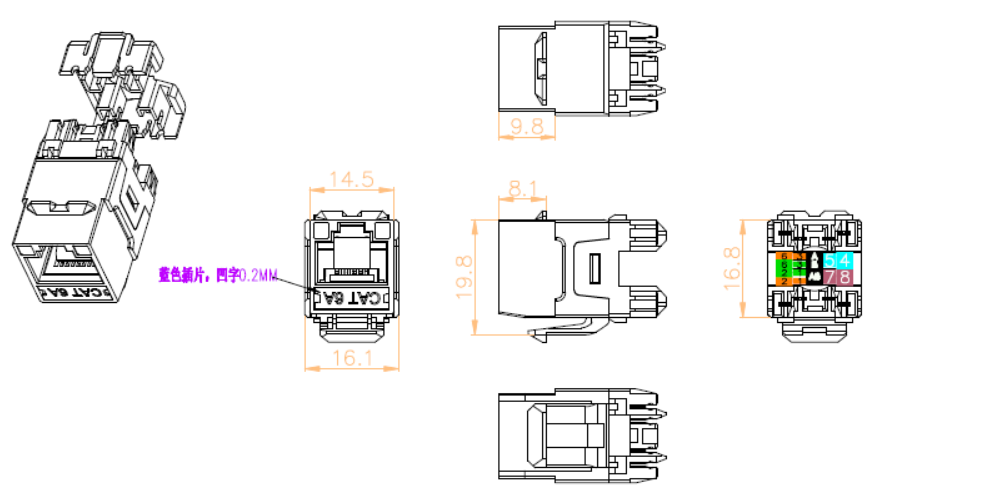

Product Model
SKJ-762101-LED SKJ-7621A1-LED
Product parameters
NOTES:
ELECTRICAL :
1. VOLTAGE RATING :125 VAC RMS.
2.CURRENT RATING :1.5 AMP
3. CONTACT RESISTANCE :20 MILLIOHMS MAX.
4. INSUL ATION RESISTANCE :100 MEGOHMS MIN @ 500 VDC.
5. DIELECTRIC STRENGTH :750 VAC RMS 60Hz, 1MIN.
6. PERMANENT LINK :CONFORM TO ANSI/TIA/EIA-568 B.2- 1
ENVIRONMENTAL
1. STORAGE: - 40C TO + 70C.
2. OPERATION: -10C TO+60C.
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F
MECHANICAL:
1. HOUSING MATERIAL:ZINC ALLOY
2. INSERT MATERIAL:PC
3. PCB MATERIAL : FR-4 T=1.2MM
4. CONTACT MATERIAL :PHOSPHOR BRONZE STAMP PIN T=0.35MM
5. IDC CONTACT MATERIAL : PHOSPHOR BRONZE T=0.50MM WITH TIN PLATING
6. RJ45 JACK LFE :750 TIMES MIN
7. IDC LIFE ; 200 TIMES MIN
8. WIRE:AWG 22- 24
9. TIA CAT.6 /CAT6A PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥3.0 OdB
10. RE TENTIVENESS OF INSERTION STRUCTURE : 50N 60+5 S
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SKJ-762101-LED | UTP Cat.6 Keystone Jack 180 Degree With LED.Punch Down | 500 PCS | 40*29*53 cm | 7 kg |
SKJ-7621A1-LED | UTP Cat.6A Keystone Jack 180 Degree With LED.Punch Down | 500 PCS | 40*29*53 cm | 7 kg |
