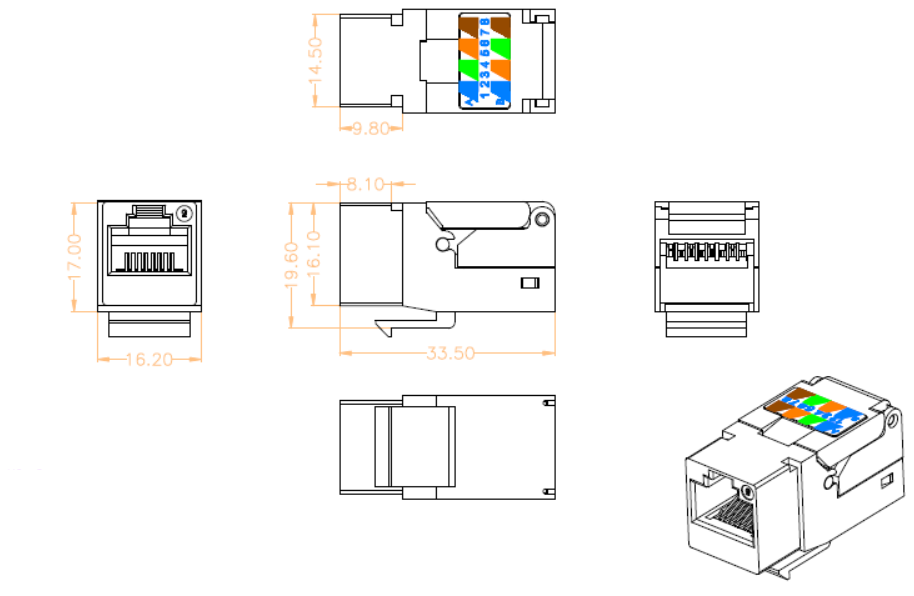

Product Model
SKJ-P33101 SKJ-P63101
Product parameters
NOTES:
ELECTRICAL :
1. VOLTAGE RATING ：125 VAC RMS.
2.CURRENT RATING ：1.5 AMP
3. CONTACT RESISTANCE ：20 MILLIOHMS MAX.
4. INSUL ATION RESISTANCE ：100 MEGOHMS MIN @ 500 VDC.
5. DIELECTRIC STRENGTH ：750 VAC RMS 60Hz， 1MIN.
6. PERMANENT LINK :CONFORM TO ANSI/TIA/EIA-568 B.2- 1
ENVIRONMENTAL
1. STORAGE: - 40C TO + 70C.
2. OPERATION: -10C TO+60C.
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F
MECHANICAL:
1. HOUSING MATERIAL：PC
2. INSERT MATERIAL：PC
3. PCB MATERIAL : FR-4 T=1.2MM
4. CONTACT MATERIAL :PHOSPHOR BRONZE STAMP PIN T=0.35MM
5. IDC CONTACT MATERIAL : PHOSPHOR BRONZE T=0.50MM WITH TIN PLATING
6. RJ45 JACK LFE ：750 TIMES MIN
7. IDC LIFE ; 200 TIMES MIN
8. WIRE：AWG 22- 24
9. TIA CAT.6 /CAT6A PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥3.0 OdB
10. RE TENTIVENESS OF INSERTION STRUCTURE : 50N 60+5 S
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SKJ-P31101 | UTP Cat.5e Keystone Jack 90 Degree with dust proof shutter | 500 PCS | 40*29*53 cm | 6.8 kg |
SKJ-P61101 | UTP Cat.6 Keystone Jack 90 Degree with dust proof shutter | 500 PCS | 40*29*53 cm | 6.8 kg |
