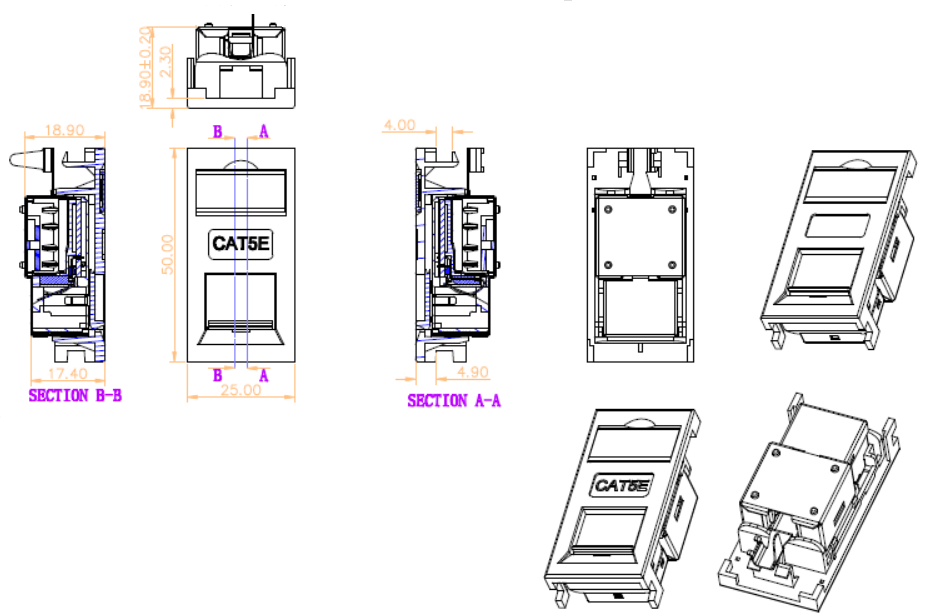

SKJ-C51101

Product Model

SKJ-C51101 SKJ-C71101 SKJ-CA11A1

Add List

Product parameters


NOTES:

ELECTRICAL :

1. VOLTAGE RATING                 125 VAC RMS.

2.CURRENT RATING                 1.5 AMP

3. CONTACT RESISTANCE        20 MILLIOHMS MAX.

4. INSUL ATION RESISTANCE   100 MEGOHMS MIN @ 500 VDC.

5. DIELECTRIC STRENGTH        750 VAC RMS 60Hz 1MIN.

6. PERMANENT LINK                :CONFORM TO ANSI/TIA/EIA-568 B.2- 1



ENVIRONMENTAL

1. STORAGE:        - 40C TO + 70C.

2. OPERATION:    -10C TO+60C.

MATES WITH MODULAR  PLUG CONFORMING TO FCC PART 68, SUBPART F



MECHANICAL:

1. HOUSING MATERIALZINC ALLOY

2. INSERT MATERIALPC

3. PCB MATERIAL :  FR-4   T=1.2MM

4. CONTACT MATERIAL   :PHOSPHOR BRONZE STAMP PIN T=0.35MM

5. IDC CONTACT MATERIAL : PHOSPHOR BRONZE T=0.50MM WITH TIN PLATING

6. RJ45 JACK LFE 750 TIMES MIN

7. IDC LIFE ; 200 TIMES MIN

8. WIREAWG 22- 24

9. TIA CAT.5e PERM.LINK TEST: WORST PAIR NEXT MARGIN 5.0 OdB

  TIA CAT.6 /CAT6A PERM.LINK TEST: WORST PAIR NEXT MARGIN 3.0 OdB

10. RE TENTIVENESS OF INSERTION STRUCTURE : 50N 60+5 S

Ordering Information


Product Code

Description

Packaging

Carton Size

GW

SKJ-C51101

FTP UK Type Cat 5e Keystone jack 50mm

500 PCS

40*29*53 cm

7.8 kg

SKJ-C71101

FTP UK Type Cat 6 Keystone jack 50mm

500 PCS

40*29*53 cm

7.8 kg

SKJ-CA11A1

FTP UK Type Cat 6a Keystone jack 50mm

500 PCS

40*29*53 cm

7.8 kg
